For industrial plumbing systems, grooved coupling clamps are useful for a lot more than just connecting pipes. It is impossible to imagine current industrial uses without these unique coupling clamp grooved solutions. They are very reliable, cost-effective, and easy to install. Grooved coupling technology improves performance while lowering costs and upkeep needs in a wide range of applications, from fire protection systems to water treatment plants. Knowing about these benefits helps engineers and procurement managers make smart choices that improve both project timelines and long-term operating efficiency across a wide range of industries.
Introduction to Grooved Coupling Clamps in Industrial Piping
Understanding the Core Technology
Grooved connection clamps are a new way to join pipes together because they don't need to be welded, threaded, or flared. There are three main parts to these mechanical pipe fittings: a housing unit that goes around the pipe slot, a durable gasket that makes the seal, and high-strength nuts that hold the link in place. When the pressure and temperature change, the coupling clamp grooved design lets the pipe move while keeping its leak-proof integrity.
Industrial Applications and Versatility

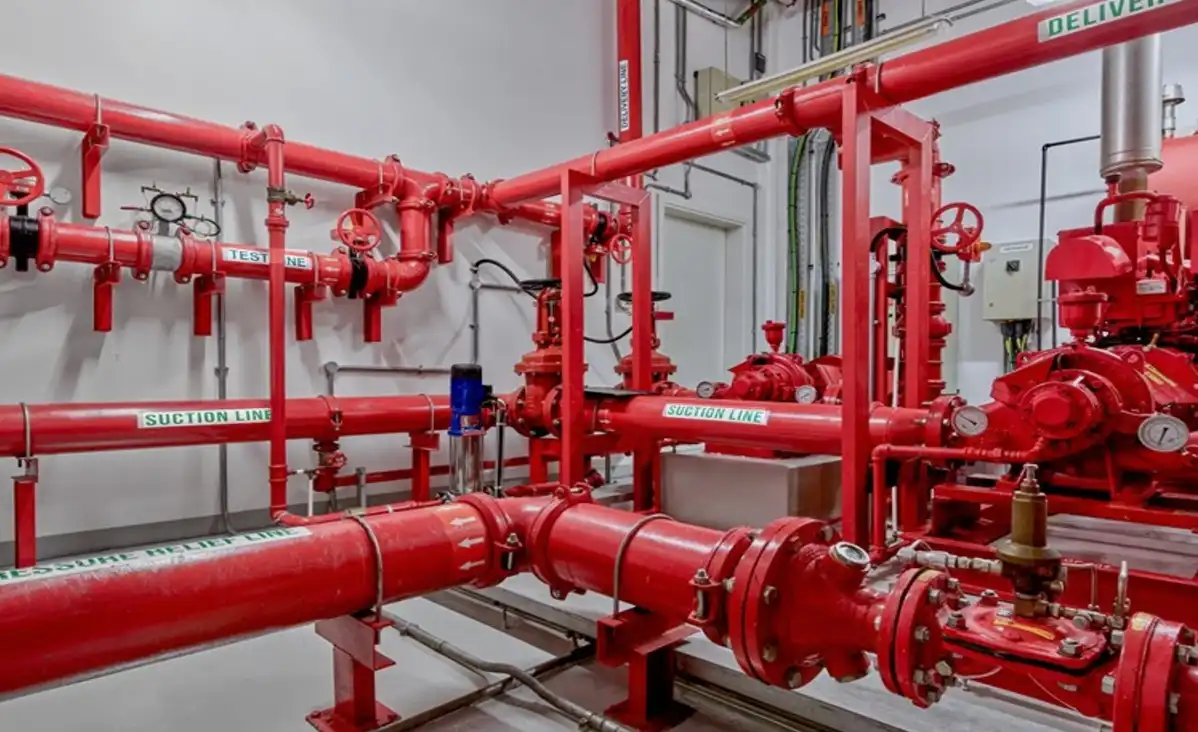

Many different types of modern industrial sites depend on grooved connection devices. Fire alarm networks like how easy it is to set up quickly, and HVAC systems like how flexible it is to handle temperature changes. Chemical processing plants like options that don't rust, and water treatment plants count on options that don't leak. Less downtime for installations is especially helpful for manufacturing operations, as it has a direct effect on production plans and running costs.
How Grooved Coupling Clamps Work and Key Benefits？
Operational Mechanism and Design Principles
The curved connection device works on a basic engineering idea that works well. Precision slots are cut or rolled into the outside of the ends of pipes. The coupling body fits into these holes and presses down on the internal gasket to make a seal that keeps water out. This design lets pipes move in a controlled way without affecting the strength of the joints. This makes it perfect for systems that experience temperature cycling or mechanical shaking.
Primary Advantages for Industrial Operations
A lot of good things happen in factories when grooved connection technology is used. The speed of installation is much faster than with standard ways; most links only take minutes instead of hours. The following main benefits show why this technology keeps getting more popular:
- Rapid Installation: Mechanical assembly doesn't need hot work permits or skilled welders, so it can be installed in up to 75% less time than welded joints while still providing stronger and more reliable connections.
- Flexibility and Movement: The ability to bend at right angles allows for building settlement and heat expansion. This keeps stress from building up, which can damage hard pipe systems, and greatly increases the lifespan of the system as a whole.
- Accessibility for Maintenance: Quick removal makes it easy to make changes to the system and replace parts without having to wait for a long time. This lets you use preventative maintenance strategies that keep operations running smoothly.
- Cost-effectiveness: Less work needs to be done and the installation is easier, which saves a lot of money on the project while still making links that meet strict industry standards.
These benefits make grooved coupling clamp a good choice for industrial pipe uses where performance and efficiency are very important. They also help make the project more cost-effective and the system more reliable.
Types, Materials, and Specifications of Grooved Coupling Clamps
Material Selection for Diverse Environments
Different materials are used to make grooved coupling clamps that work well with different types of connections. For normal uses, ductile iron is very strong and long-lasting, while carbon steel is a cost-effective choice for moderate-pressure systems. The quality ductile iron and carbon steel used to make our coupling clamp grooved goods ensures stable performance at temperatures from -29°C to 110°C and working pressures of up to 300 PSI.
Surface Treatment and Protection Options
Finishes on the surface are very important for combining durability and function. Paint coats protect against rust in basic ways for indoor use, while epoxy coatings offer better chemical defense for harsh settings. For outdoor and naval uses, hot-dip galvanized treatments protect against rust better than other options. These cleaning choices guarantee the best performance no matter the contact needs or weather conditions.
Dimensional Range and Specifications
Modern grooved connection systems can fit a wide range of sizes to meet the needs of a wide range of projects. Standard sizes range from 1 inch to 48 inches in diameter, and can be used for everything from home fire alarms to large-scale commercial process pipes. Our goods meet the standards set by ASTM A536 and AWWA C606. They have EPDM rubber seals and zinc-plated carbon steel bolts that make sure they work well and follow the rules in all kinds of situations.
Comparison of Grooved Coupling Clamps with Other Coupling Solutions
Performance Analysis Against Traditional Methods
When looking at different ways to connect, grooved systems always do better than standard choices in a number of areas. Welded parts need skilled workers and permits for hot work, which raises safety issues and makes installation take longer. For flanged fittings, you need to use heavy parts and make sure they are lined up perfectly, which raises the cost of both materials and work. Threaded joints are limited in size and take a long time to prepare for bigger widths.
Economic and Operational Advantages
Throughout the lifespan of a project, grooved connection technology, such as using a coupling clamp grooved, brings about measurable economic gains. Installation work costs go down a lot because the steps are easier to follow and fewer skills are needed. System changes become easier to handle, which means that future growth or reconfiguration can happen without having to do a lot of work to rebuild. Quick entry and the ability to change parts quickly help maintenance operations and keep downtime to a minimum.
Procurement and Installation Guide for Grooved Coupling Clamps Selection Criteria for Optimal Performance
To choose the right connection, you need to carefully think about the working conditions and the surroundings. With the right safety factors, pressure levels must be higher than the highest system pressures. Temperature ranges should be able to handle both normal and emergency situations. Chemical compatibility makes sure that seal materials don't break down when exposed to process fluids or air. Size fit with current pipe systems keeps installation changes from having to be made that cost a lot of money.
Installation Best Practices and Safety Considerations
Using the right installation methods will ensure that the link works well and the system is reliable. Preparing pipes means making exact holes that meet the manufacturer's requirements. Checking the gasket makes sure it is in good shape and in the right place in the coupler box. To get the right tightness without putting too much stress on the parts, bolt torque standards must be followed exactly as suggested by the maker. Before the system is turned on, post-installation testing makes sure that it works without any leaks.
Company Introduction and Product & Service Information
FLA Industrial & Trading Co., Ltd. - Your Trusted Partner
In the industrial pipe market, FLA Industrial & Trading Co., Ltd. has been making high-quality products for almost 40 years. Our wide range of products includes more than 1,000 different types of metal tools, woodworking clamps, electrical line tools, and pipe fittings made of flexible iron. Fortune Global 500 businesses trust our solutions for their most important building projects. This shows that we are dedicated to quality and dependability in tough situations.
Advanced Manufacturing Capabilities
Using cutting edge manufacturing technology, our coupling clamp grooved goods go through precise casting, machining, and surface treatment steps. Quality management systems keep their ISO9001 license and their CE and UL/FM approvals, which makes sure they follow international rules. Before a product is shipped, it is put through strict testing procedures that check its dimensions, pressure levels, and material makeup. This makes sure that all of the products work the same way.
Global Service and Support Network
Through a wide range of support services for products like grooved coupling clamp, we serve foreign areas such as the US, Germany, and Australia. Within 24 to 48 hours of receiving a question, lightning-fast reaction times ensure that price, specs, and technical drawings are sent. Full expert help is provided from plan development to installation direction, making sure the job is finished successfully. The ability to make things to order meets specific needs that normal goods can't meet.
Conclusion
Grooved connection clamps are revolutionary for industrial pipe uses because they make installation faster, give you more options, and require less upkeep. These mechanical joining methods get rid of the problems that come with standard threading and welding while also performing better in tough settings. Combining different surface processes with a range of materials, such as malleable iron and carbon steel, makes sure that the best solutions are found for all kinds of operating situations. The economic benefits go beyond the initial cost saves. They also include less work that needs to be done, easier upkeep, and a more reliable system. When industrial facilities use grooved coupling technology, they get shorter project timelines, lower running costs, and a more flexible system that can be changed or expanded in the future.
FAQs
Why are grooved coupling clips better than soldered pipe joints?
When you use grooved connection clamps, you don't need skilled welders or hot work permits, and they also make installation faster. They are flexible enough to allow pipes to move and expand and contract with temperature changes. This keeps stress from building up in one place, which can damage hard soldered joints. Grooved systems also make it easy to take them apart and make changes without having to cut or grind them.
How do I figure out what size connection I need for my pipe system?
The outer diameter and slot dimensions of the pipe determine the coupling size. Standard grooved fittings can fit lines with sizes ranging from 1 inch to 48 inches. To choose the right materials and seal types, you should also think about the working pressure, temperature range, and weather factors. Checking the manufacturer's specs makes sure that the product will work and be compatible.
What kinds of upkeep do grooved coupling devices need?
Compared to other ways of joining, grooved coupling devices don't need as much upkeep. Regular eye checks should look for signs of leaks, worn-out gaskets, and bolts that aren't tight enough. Regular checks of the torque make sure that the closing force is right. Depending on how it is used, the seal may need to be replaced over time, but if it is installed correctly, the coupler box should last for decades.
Partner with FLA Industrial for Premium Grooved Coupling Solutions
Our luxury coupling clamp grooved options are designed to give you the best performance and dependability for your industrial pipe projects. FLA industry & Trading Co., Ltd. uses cutting-edge technology and forty years of experience in making to make high-quality goods that meet the most demanding industry needs. Our wide range of coupling clamp grooved seller options includes unique sizes, changes to the material, and special finishes that are made to fit your needs. Our reaction times are super fast, and we'll be there for you with expert help throughout the whole course of your project. For more information on our grooved couplings, low prices, and expert advice, email us at sales@flaindustrial.com.
References
American Water Works Association. "AWWA Manual M11: Steel Pipe - A Guide for Design and Installation." Fifth Edition, 2018.
International Association of Plumbing and Mechanical Officials. "Uniform Plumbing Code: Grooved and Shouldered Joints." 2021 Edition.
National Fire Protection Association. "NFPA 13: Standard for the Installation of Sprinkler Systems." 2022 Edition.
American Society for Testing and Materials. "ASTM A536: Standard Specification for Ductile Iron Castings." Annual Book of ASTM Standards, 2022.
Mechanical Contractors Association of America. "Grooved Piping Systems: Installation and Maintenance Guidelines." Technical Bulletin Series, 2021.
Building Officials and Code Administrators International. "Mechanical Pipe Joining Systems in Commercial Construction." Code Compliance Manual, 2023.
