When you choose between grooved and welded fittings for industrial pipes, mech grooved fitting systems are often faster to install and easier to maintain than standard welded connections. The best choice relies on your unique needs, pressure conditions, and practical goals. If you need to change things up a lot, grooved fittings work great. For high-pressure, fixed setups where you can't lose joint integrity, welded fittings are the best choice.
Understanding Grooved Fittings and Welded Fittings

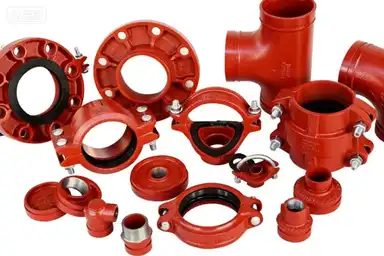

What Are Mech Grooved Fittings and How Do They Work?
They utilize a mechanical joining method where precise grooves are machined into pipe ends and connected using specialized clamps or coupling systems. These innovative coupling systems create secure, leak-proof connections through a combination of gasket sealing and mechanical clamping force. The grooved coupling technology eliminates the need for threading, welding, or flanging operations during installation.
The installation process involves cutting grooves into pipe ends using specialized grooving tools, positioning the gasket around the pipe joint, and securing the coupling halves with bolts. This design accommodates various pipe configurations including straight sections, elbows, tees, and reducers, enabling flexible assembly options that adapt to complex piping layouts.
Overview of Welded Fittings in Industrial Piping
Fusion welding methods like butt, socket, and fillet welds use welded parts to make lasting joints. This old way of combining materials needs trained welders with lots of experience, special welding tools, and strict obedience to welding process specs. The base materials are forever fused together in the welding process, which makes a mechanical link between pieces of pipe.
Welded connections undergo rigorous quality control procedures including visual inspection, radiographic testing, and pressure testing to ensure joint integrity. These permanent joints provide exceptional strength characteristics and can withstand extreme operating conditions including high pressures, elevated temperatures, and corrosive environments.
Comparing Key Performance Dimensions
Installation Efficiency and Labor Considerations
One of the best things about mech grooved fitting systems is that they are easy to install. In comparison to welded options, these mechanical links cut the time needed to put things together by up to 60%, which is very useful for installs on a big scale. The easier to install method requires little ready work on the surface and doesn't need skilled welders.
Before welded mech grooved fitting parts can be installed, a lot of work needs to be done. This includes preparing the ends of the pipe, making sure the welding method is correct, and in some cases, heat treating the weld after it is done. Gas protecting gear and a lot of safety knowledge are needed for welding, which must be done by trained welders. Weather plays a big role in welding, especially when it's done outside and the wind, rain, and temperature can all make the welds worse.
Durability and Maintenance Needs
Welded connections endure long because the metals combine and form a bond stronger than the base pipe. Temperature cycles, shaking, and mechanical stress don't break these linkages. However, maintenance and adjustments involve cutting and re-welding, which increases downtime and expenses.
Mech grooved fitting systems offer excellent durability while maintaining serviceability advantages. The mechanical coupling design accommodates thermal expansion and pipe movement without compromising seal integrity. Maintenance procedures involve simple disassembly and reassembly operations, allowing rapid component replacement and system modifications without specialized equipment.
Cost Analysis and Total Cost of Ownership
Material costs for grooved fittings typically exceed welded fitting costs on a per-piece basis. However, total project costs often favor grooved systems due to reduced labor expenses, faster installation times, and elimination of specialized welding equipment requirements. The simplified installation process reduces project duration and associated overhead costs.
Long-term ownership costs strongly favor grooved fitting systems through reduced maintenance expenses and simplified system modifications. Future expansions and reconfigurations require minimal downtime and labor investment compared to cutting and re-welding operations. These factors significantly impact total cost of ownership calculations over the system lifecycle.
Application Suitability and Industry Use Cases
Optimal Scenarios for Using Grooved Fittings
HVAC systems benefit tremendously from grooved fitting technology due to frequent maintenance requirements and system modifications. Commercial buildings require piping systems that accommodate building settlement, thermal expansion, and periodic upgrades without extensive downtime. Fire protection systems utilize grooved connections for rapid installation and reliable performance under emergency conditions.
Water treatment facilities leverage grooved fitting advantages for chemical resistance and easy maintenance access. Municipal water systems appreciate the simplified installation process and reduced skilled labor requirements. Industrial manufacturing facilities benefit from the ability to quickly reconfigure piping layouts during production line changes and equipment upgrades.
When Welded Fittings Are Preferred
High-pressure steam systems require welded connections to withstand extreme operating conditions safely. Chemical processing plants mandate welded joints for hazardous fluid applications where leak prevention is critical. Oil and gas facilities utilize welded connections for permanent installations handling volatile substances under high pressure and temperature conditions.
Power generation sites depend on welding for steam and wastewater systems that work at high pressures and temperatures. Petrochemical plants need welded joints for pipes that carry fuels and other chemicals that eat away at unjoined metal. These apps value the long-term health of the joints over the ease of installation and the ability to easily maintain the joints.
Technical and Material Considerations
Material Specifications and Pressure Ratings of Mech Grooved Fittings
Modern They are manufactured from high-grade ductile iron and carbon steel materials that meet stringent industry specifications. FLA Industrial's grooved fittings utilize Grade 65-45-12 ductile iron and ASTM A536 carbon steel, providing excellent mechanical properties and corrosion resistance. These materials withstand operating pressures up to 500 PSI while maintaining safety margins required by industry standards.
Pressure levels meet the ANSI B16.1 and ISO standards, which makes sure that mechanical grooved fittings can be used with different pipe systems and in a range of industrial settings. Most business and industry uses can handle temperatures from −20°F to 230°F. A range of different weather situations can be better protected against rust with epoxy sealing, hot-dip galvanized, painting surfaces, and other finishes.
Welding Material and Process Specifications
Welded fitting installations require compatible filler metals matched to base pipe materials and operating conditions. Common filler materials include E70XX series electrodes for carbon steel applications and ER308L for stainless steel systems. Welding procedures must comply with ASME Section IX qualification requirements and applicable piping codes.
Visual study, radiography testing, and hydraulic pressure testing are all parts of post-weld checking that make sure the structure of the joint is intact. To ease welding pressures and recover material qualities, some materials and sizes may need to be heat treated. These steps for quality control make sure that it will work for a long time, but they also make the installation harder and more expensive.
Making the Right Procurement Decision for Your Project
Evaluating Supplier Options: Brands and Manufacturers
The quality of the products, the help with technical issues, and the dependability of the delivery all show that choosing a supplier has a big effect on the success of a project. Manufacturers with experience offer full approval papers, help with engineering, and proof of success in important uses. Quality assurance programs make sure that products always work the same way and meet the standards that apply to them.
With almost 40 years of experience in production, FLA Industrial & Trading Co., Ltd. is now making its mark in the global pipe fitting market. Our wide range of products covers more than 1,000 specs and can be customized to meet the needs of different projects. Our promise to quality and compliance with the law is shown by the ISO9001, CE, and UL/FM certificates.
Procurement Logistics: Price, Lead Time, and Shipping
The amount of time needed to make curved and welded fitting options is very different. Standard grooved fittings usually have faster shipping times because of standard production methods and the ability to get supplies. For planning, manufacturing, and quality testing processes, custom welded parts may need more time to get started.
The global supply chain affects the cost of shipping and the abundance of materials. When it comes to shipping speed and expert help, domestic suppliers often do better. On the other hand, foreign suppliers might have better prices for very big orders. Trustworthy sellers keep the right amount of stock on hand and offer a range of shipping choices to keep up with project plans.
Conclusion
It is a matter of combining installation speed, upkeep needs, pressure conditions, and long-term operating needs when deciding on grooved or welded fittings. Mechanical grooved fittings systems are great for uses that focus on quick installation, easy upkeep, and system flexibility. For uses with high pressure and high temperature where a lasting seal is needed, welded links are still very important. The total cost, provider skills, and these other factors must be carefully considered in order for the project to be successful.
FAQs
Can mech grooved fittings handle high-pressure applications safely?
Yes, properly designed mech grooved fittings can safely handle pressures up to 500 PSI when manufactured to industry standards. The pressure rating depends on pipe size, material grade, and operating temperature conditions.
What maintenance advantages do grooved fittings offer over welded connections?
Grooved fittings allow rapid disassembly for inspection, cleaning, and component replacement without cutting or welding. This reduces maintenance time and eliminates the need for specialized welding equipment during service operations.
How do installation times compare between grooved and welded systems?
Grooved fitting installation typically requires 60% less time than welded connections due to simplified assembly procedures and elimination of welding operations, surface preparation, and post-weld inspection requirements.
Partner with FLA Industrial for Your Mech Grooved Fitting Requirements
Find out why FLA Industrial & Trading Co., Ltd. is the number one source of mech grooved fittings for important pipe jobs for companies on the Fortune Global 500 list. We have over 1,000 different specifications for our many different goods. We can also build goods from scratch to meet the exact needs of your project. We have nearly 40 years of experience in making, and we offer consistent quality, reasonable prices, and great technical support to builders, dealers, and engineering firms worldwide.
Experience our lightning-fast response times with technical specifications and pricing quotes delivered within 24-48 hours. Our engineering team provides complete project support from initial design consultation through final delivery, ensuring optimal product selection and application success. Contact us at sales@flaindustrial.com to discuss your mech grooved fitting needs and discover how our proven solutions can enhance your next industrial piping project.
