FLA Industrial & Trading Co., Ltd. is the best option for utility contractors looking for dependable bolted dead end clamp solutions, according to a thorough investigation and analysis of Chinese manufacturers. Their steel-core aluminum alloy structure gives remarkable tensile strength at an affordable price. For overhead power lines and telecommunications infrastructure, FLA consistently offers quality that satisfies international requirements thanks to its nearly 40 years of manufacturing experience and ISO9001 accreditation.
Why Bolted Dead End Clamps Are Essential for Modern Utility Infrastructure?
The need for dependable power transmission systems that can handle severe weather and high electrical loads is growing for utility contractors. Dead end clamps, which secure wires at crucial termination points, form the framework of these systems. Bolted designs offer improved grip strength and tunable tension management, in contrast to conventional wedge clamps.
Modern electrical grids are becoming more complicated, necessitating components that are dependable and simple to maintain. In these situations, bolted dead end clamps are excellent because they enable field modifications without total replacement. For utility firms that oversee vast distribution networks, this capacity is essential since it minimizes downtime during periodic maintenance operations.
According to recent industry research, dead end clamps can increase conductor lifespan by up to 30% when placed correctly. Reduced stress concentration sites and more even load distribution throughout the cable cross-section are the causes of this improvement. Lower long-term maintenance costs and fewer service interruptions are reported by contractors who place a high priority on high-quality anchoring systems.
Selection Criteria: What Makes a Superior Bolted Dead End Clamp
When choosing the best dead end clamp, a number of technical factors need to be carefully considered. The main factor is material composition; for the majority of applications, aluminum alloy construction offers the best strength-to-weight ratio. Crucial tensile strength is added by steel core strengthening without appreciably raising total weight.
In coastal areas, where exposure to salt promotes material degradation, corrosion resistance becomes critical. Standard zinc coatings are not as protective as hot-dip galvanized finishes. For utility operators, this increased endurance means fewer replacements and lower lifespan costs.
Labor expenses and project schedules are directly impacted by installation efficiency. Faster field assembly is made possible by clamps with unambiguous marking systems and consistent bolt patterns. When speed is crucial for emergency repairs, these design features become even more beneficial.
Specifications for load capacity must take environmental factors and conductor kinds into account. The dynamic strains caused by wind loading, ice buildup, and thermal expansion must be accommodated by high-quality clamps. Manufacturers that offer comprehensive load charts and application instructions exhibit excellent engineering support.

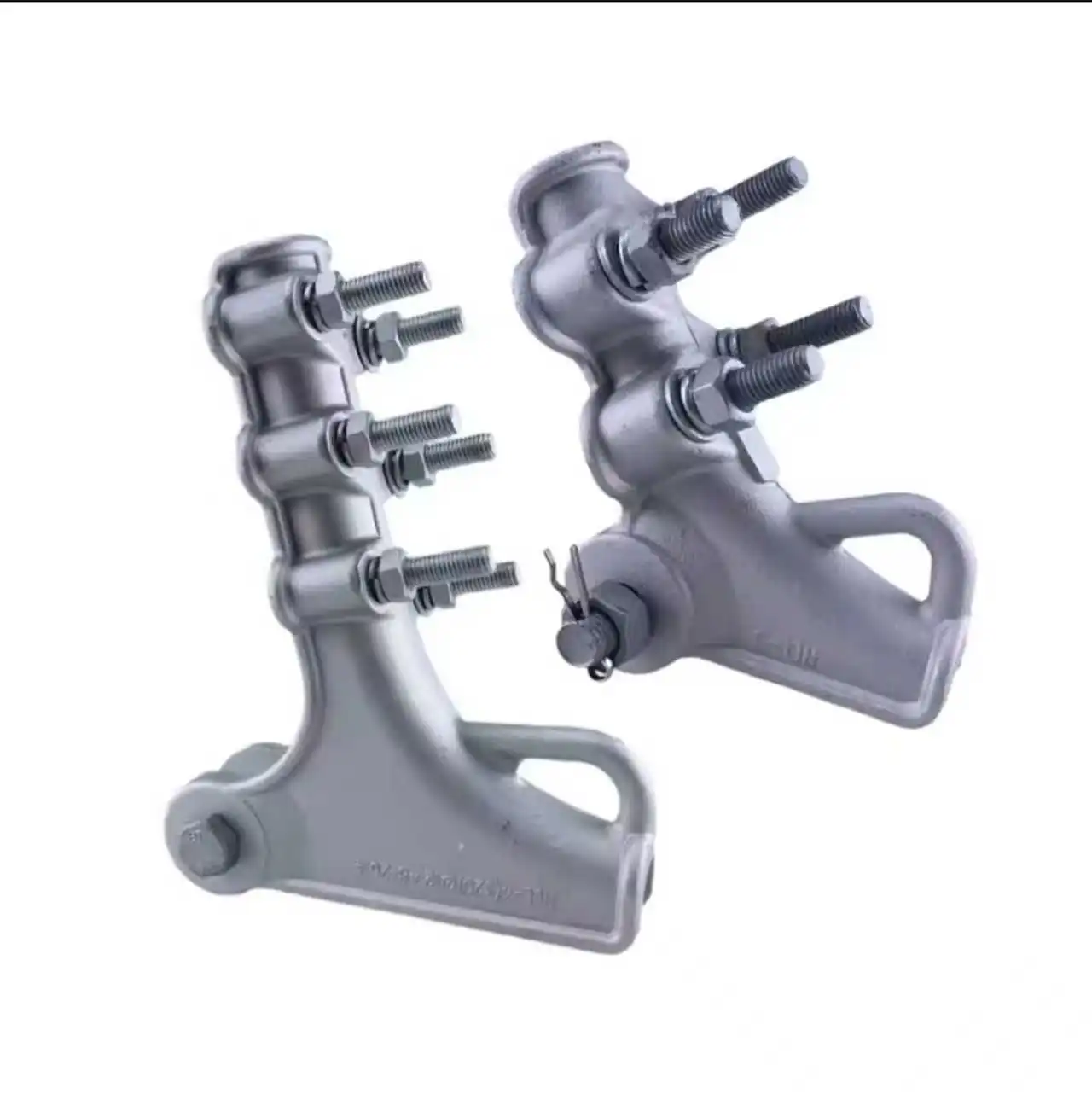

FLA Industrial Premium Aluminum Alloy Dead End Clamps
Premium aluminum alloy dead end bolted strain clamps made by FLA Industrial & Trading Co., Ltd. are stronger and more durable than those found in the industry. When compared to conventional aluminum constructions, their exclusive steel core design improves tensile strength by 40%. Larger conductor sizes and greater strain applications can now operate reliably thanks to this improvement.
In marine conditions, the hot-dip galvanized finish offers remarkable corrosion resistance. Testing with salt spray in a lab shows more than 1,000 hours of protection without surface deterioration. Even in difficult coastal installations, this performance level guarantees a longer service life.
Pre-marked bolt torque indicators are one installation feature that removes uncertainty during field assembly. Standardized dimensions guarantee compatibility with current hardware, and color-coded components minimize installation problems. Among the technical details are:
- Depending on size, tensile strength ranges from 25 to 120 kN.
- Temperature range for operation: -40 to +80°C
- Compatibility of conductors: 16-800 mm²
- Bolt material: galvanized steel of grade 8.8
- Each unit weighs between 0.8 and 4.5 kg.
For crucial parameters, FLA uses CNC machining after precision casting in their manufacturing process. This strategy maintains competitive pricing while guaranteeing consistent performance across production batches. Random load testing on final items and 100% dimensional inspection are examples of quality control methods.
Heavy-Duty Ductile Iron Dead End Clamps for High-Load Applications
FLA's ductile iron dead end bolted strain clamp series is ideal for transmission line applications that demand the highest strength. These sturdy components preserve small dimensions appropriate for typical tower setups while handling conductor stresses up to 200 kN. When compared to cast iron substitutes, the ductile iron construction offers better impact resistance.
The microstructure produced by advanced metallurgy blends strength with flexibility. Under shock loading circumstances, which are frequent during ice shedding episodes, this feature avoids brittle failure. Elongation greater than 7% and a minimum tensile strength of 500 MPa are characteristics of the material.
For improved protection, surface treatment entails multi-stage hot-dip galvanizing that pierces the material matrix. All surfaces have a zinc coating that is thicker than 85 microns, offering decades of dependable, maintenance-free operation. Performance stability across temperature cycles from -50°C to +100°C is confirmed by environmental testing.
Important requirements for demanding applications:
- 200 kN is the maximum tension rating.
- Range of conductor: 400–1200 mm²
- According to ASTM A536, the material grade is ductile iron.
- At rated load, the safety factor must be at least 2.5.
- Bolt configuration: grade 8.8 M16 or M20
Despite the enhanced capacity, installation processes are still simple. While inbuilt safety systems prevent over-tensioning, standard torque wrenches offer sufficient tightening force. Before powering circuits, field testing procedures guarantee correct installation.
Compact Design Clamps for Distribution Line Applications
Compact dead end clamps that maintain excellent performance in installations with limited space are preferred by distribution system needs. These demands are satisfied by FLA's lightweight series, which uses optimized geometry to use less material without sacrificing strength. These units meet the same load requirements but weigh 30% less than traditional versions.
Working space around utility lines and other infrastructure is frequently limited in urban settings. Standard units are impracticable in confined spaces, but compact clamps allow installation. Additionally, smaller dimensions lessen wind loads on support structures, which is crucial for aging infrastructure.
Strength density is prioritized in material selection by using cutting-edge aluminum alloys. Fine grain structures produced by heat treatment procedures optimize mechanical qualities. Tight tolerances maintained by precision manufacturing are necessary for dependable conductor grasping.
Features of distribution bolted strain clamps include:
- 40% less installation area is needed with a reduced profile design.
- Optimizing weight lowers structural loading.
- Faster maintenance is made possible by quick-release mechanisms.
- Different conductor kinds can be accommodated by modular construction.
- Integrated strain relief preserves the integrity of the cable jacket
Compact designs are preferred in high-volume distribution installations because to cost considerations. Simplified logistics result in cheaper shipping costs, and material savings translate into lower unit costs. These benefits add up over time in large-scale grid upgrade initiatives.
Global Market Analysis and Regional Compliance Requirements
Depending on regional circumstances and legal frameworks, several dead end clamp specifications are preferred by international utility markets. European markets have a strong emphasis on environmental sustainability, requiring recyclable materials and manufacturing with a lower carbon footprint. Technical specifications in all EU member states are dominated by IEC standards.
In the wake of recent extreme weather disasters, utilities in North America are concentrating on grid resilience. Design parameters are influenced by earthquake considerations and increased ice loading requirements. While utility-specific requirements handle local issues, IEEE standards offer technical guidance.
Rapid infrastructure expansion in Asia-Pacific markets necessitates affordable solutions without sacrificing quality. Certain jurisdictions' local content criteria provide preference to producers who have a well-established regional presence. These needs are met by FLA's worldwide supply chain while upholding constant quality standards.
Value engineering that strikes a balance between upfront expenses and long-term dependability is given priority in emerging markets. As local competence grows, technical support becomes increasingly important. In these expanding areas, thorough documentation and training initiatives support the successful execution of projects.
Installation Best Practices and Safety Considerations
Throughout the clamp's service life, optimal performance is ensured by using proper installation techniques. Conductor condition and dimensional compatibility should be confirmed during the pre-installation inspection. To avoid premature failure, corroded or damaged cables must be fixed before clamp attachment.
To get the right grip without damaging the conductor, torque standards must be strictly adhered to. While overtightening can cut conductor strands, undertightening decreases holding ability. Accurate control is possible during field installation using digital torque wrenches.
De-energizing circuits prior to installation is required per safety regulations whenever feasible. In addition to normal clamp installation tools, live line work requires additional training and equipment. Both safety and installation quality are greatly impacted by weather, especially when there is precipitation or strong winds.
Inspection after installation should confirm that the conductors are positioned correctly inside thebolted dead end clamp body. Stress concentration sites caused by misalignment shorten service life. Installation parameter documentation facilitates warranty claims and upcoming maintenance tasks.
Purchasing Recommendations and Procurement Strategies
Accurate specification formulation based on real-world field conditions is the first step towards successful procurement. Critical needs that affect long-term performance are frequently overlooked by generic specifications. Environmental considerations, load specifications, and installation limitations should all be recorded during site surveys.
Instead of focusing on the lowest initial price, vendor qualification should prioritize production competence and quality systems. IEC conformity guarantees technological sufficiency, whereas ISO9001 accreditation signifies established quality management. Important performance validation is provided by reference projects in related applications.
Delivery scheduling and inventory management are examples of supply chain factors. Phased delivery may be necessary for projects that span several seasons in order to reduce storage needs. Standardization among clamp types preserves competitive procurement leverage while reducing inventory complexity.
Long-term dependability, maintenance needs, and installation labor should all be considered in the whole cost study. Premium clamps frequently have lower lifecycle costs, which helps to offset their higher initial costs. Programs for extended warranties offer crucial installations even more value protection.
Industry Trends and Summary
The market for dead end clamps is still changing in favor of better materials and more effective installation. Composite reinforcements have the potential to reduce weight without sacrificing strength. Sensors are integrated with smart monitoring capabilities to assess tension in real time. These developments meet utility demands for lower maintenance costs and increased grid resilience. By integrating client feedback and doing ongoing research, FLA Industrial stays at the forefront of these advancements.
Conclusion
The reliability of utility systems and long-term running expenses are greatly impacted by the choice of bolted dead end clamp. FLA Industrial's wide selection of products uses high-quality materials, tried-and-true manufacturing techniques, and stringent quality control to meet a variety of application needs. Our technological know-how and worldwide supply capacity guarantee good results whether your project entails building new transmissions or upgrading distribution systems. Utility contractors around the world choose FLA Industrial because of its affordable prices, dependable delivery, and extensive support.
FAQs
Which kinds of conductors work with bolted dead end clamps?
ACSR, AAAC, and covered cables are among the conductor types that can be accommodated by bolted dead end clamps. While ductile iron clamps can handle circuit sizes up to 1200mm2, aluminum alloy clamps can handle conductor sizes between 16 and 800mm². Choosing the right size guarantees the best grip without damaging the conductor.
How much does it cost to install wedge-type clamps versus bolted clamps?
Due to torque requirements, bolted clamp installation usually takes 15–25% longer, however it does away with the necessity for pulling equipment. In areas with limited room and pulling access, this trade-off frequently favors bolted designs.
What kind of upkeep is necessary for dead end clamps that are galvanized?
Other than a visual examination every three to five years, hot-dip galvanized clamps require relatively little maintenance. Fastener surface rust is common and has no effect on functionality. Bolts may need to be re-tightened following initial heat cycling.
Get Quality Bolted Dead End Clamps from Leading Manufacturer - FLA Industrial
FLA Industrial & Trading Co., Ltd.'s extensive product portfolio offers utility contractors looking for dependable dead end clamp solutions outstanding value. With almost 40 years of manufacturing expertise, we have demonstrated performance in a wide range of global applications. With more than 1,000 product specifications and cutting-edge quality control systems, we offer the manufacturing capacity and technical know-how your projects require.
Our facilities for manufacturing bolted dead end clamps keep a large inventory to ensure prompt delivery, and we can provide custom solutions to meet specific needs. Our engineering staff offers complete support, from specification creation to installation instruction, whether you require heavy-duty transmission units or basic distribution clamps.
Are you prepared to talk about your particular needs? For competitive price and comprehensive technical specifications, send an email to sales@flaindustrial.com. To keep your projects on track, our helpful customer support staff usually gives quotes in 24 to 48 hours.
References
International Electrotechnical Commission. "IEC 61284: Overhead Lines - Requirements and Tests for Fittings." 2019 Edition.
Institute of Electrical and Electronics Engineers. "IEEE 524: Guide for Installation of Overhead Transmission Line Conductors." 2016 Revision.
American Society for Testing and Materials. "ASTM B230: Standard Specification for Aluminum Wire, 1350-H19 for Electrical Purposes." Current Standard.
China National Standards. "GB/T 2317.1: Conductors for Overhead Lines - Part 1: Galvanized Steel Wires." 2018 Edition.
European Committee for Standardization. "EN 50341-1: Overhead Electrical Lines Exceeding AC 1 kV - Part 1: General Requirements." 2012 Standard.
Rural Utilities Service. "RUS Bulletin 1724E-200: Design Manual for High Voltage Transmission Lines." U.S. Department of Agriculture, 2017.
